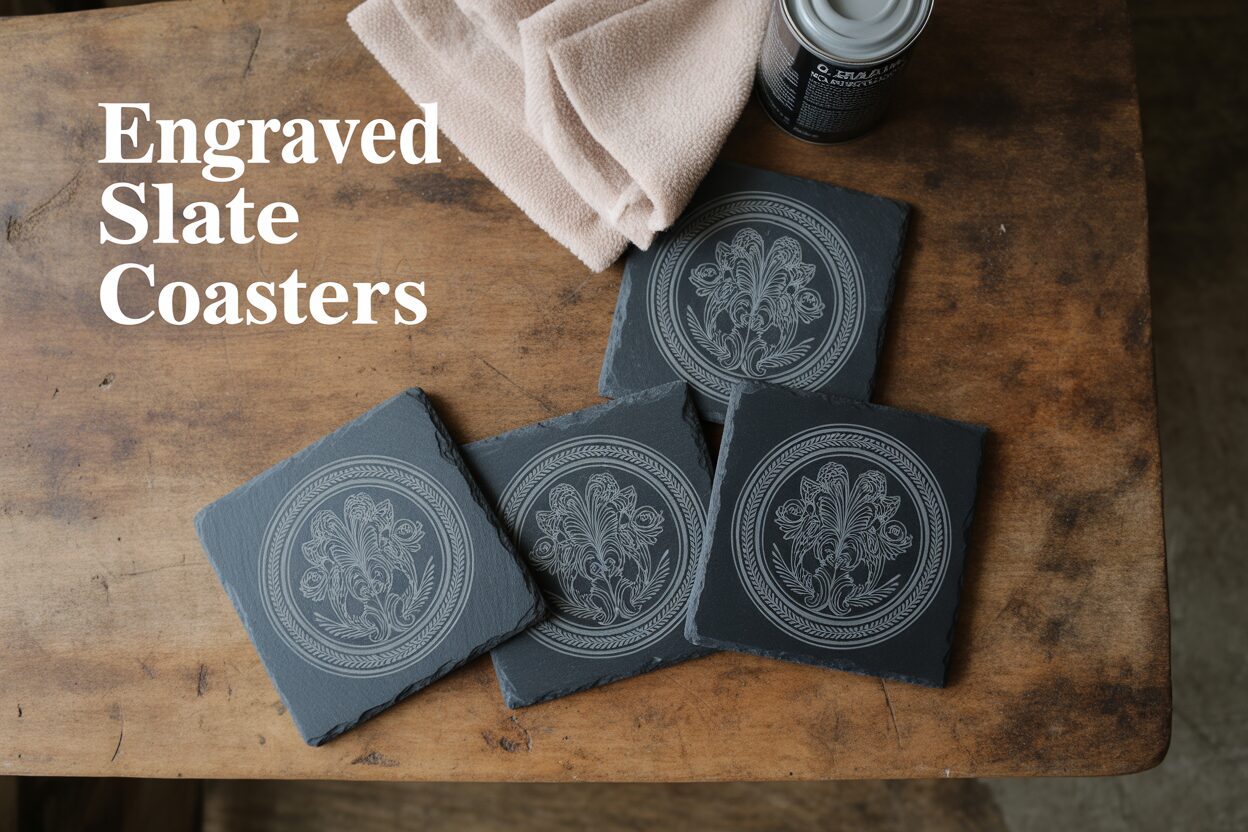

A Complete Guide to Creating Beautiful Engraved Slate Coasters

Estimated Reading Time: 8 minutes

Key Takeaways

• Material Selection is Crucial: Start with high-quality slate that is flat, smooth, and uniform in thickness to avoid focus issues and ensure a professional-looking result.
• Measure Every Coaster: Due to natural variations, you must measure the thickness of each individual slate coaster with digital calipers and manually input that value for precise laser focus.
• Low Power, High Speed: Unlike wood, slate engraving requires relatively low laser power and high speed to fracture the surface and create a bright white mark, rather than melting it into a dark slag.
• Clean and Seal for a Professional Finish: Always clean the engraved slate with a soft brush and water to remove dust. Then, seal it with mineral oil or acrylic spray to dramatically enhance contrast, protect the design, and ensure durability.

Table of Contents

• Selecting and Preparing Slate for Engraving
  • Understanding Natural Variations and Inclusions
  • A Step-by-Step Preparation Guide
• Mastering Laser Settings for Perfect Results
  • Starting Parameters for Your Laser
  • Fine-Tuning with a Material Test Grid
• Post-Engraving Finishing Techniques
  • The Essential First Step: Cleaning Engraved Slate
  • Protecting and Enhancing: Sealing Engraved Slate
• Conclusions
• Frequently Asked Questions

Transform simple slate coasters into personalized works of art. This guide provides a comprehensive walkthrough of the entire slate engraving process. We’ll cover everything from initial preparation and dialing in your laser settings to the crucial finishing steps of cleaning and sealing your creations, ensuring you can produce stunning, high-quality engraved slate coasters every time.

Selecting and Preparing Slate for Engraving

The quality of your finished product is directly tied to the quality of the raw material you begin with. While it might be tempting to purchase the cheapest bulk slate available, taking the time to select high-quality, uniform pieces is the first and most critical step in creating a professional-looking engraved coaster. Natural stone is inherently inconsistent, but minimizing that inconsistency from the start will save you immense frustration and material waste. When sourcing your slate, pay close attention to three key characteristics: thickness, flatness, and having a smooth surface. Consistent thickness across a batch ensures that your laser focus settings remain relatively stable, though as we’ll see, individual measurement is still paramount. Flatness is non-negotiable; a warped or bowed coaster will cause the laser’s focal point to drift as it travels across the surface, resulting in an engraving that is sharp in some areas and blurry or weak in others. Finally, inspect the surface texture. While all slate has a natural, slightly rough finish, you should avoid pieces with deep gouges, excessive flaking, or large, uneven ridges that can disrupt the design.

Understanding Natural Variations and Inclusions

Beyond the physical shape, it’s important to understand the composition of the slate itself. As a natural, metamorphic rock, slate often contains mineral inclusions that can affect the slate engraving process. The most common inclusion you will encounter is pyrite, also known as “fool’s gold.” These metallic, brassy-colored specks or veins can add a beautiful, rustic character to a piece, but they can also be problematic for laser engraving. Pyrite is much denser and has a different composition than the surrounding slate, meaning it does not react to the laser in the same way. When the laser beam hits a deposit of pyrite, it will typically fail to ablate the material, leaving the metallic fleck untouched within your design. This can result in an unengraved spot or a small void in your artwork. While tiny specks are often unnoticeable, a larger vein running through a key part of your design, like a letter or a fine detail, can ruin the piece. Always inspect each coaster for large or poorly placed pyrite deposits before you begin engraving.

A Step-by-Step Preparation Guide

Once you have carefully selected your slate coasters, proper preparation is essential to create a pristine canvas for the laser. This process involves two crucial stages: cleaning the surface and measuring for accurate focus. Do not skip these steps, as they are fundamental to achieving crisp, high-contrast results.

1. Cleaning the Slate Surface

Slate coasters are often covered in fine stone dust from the quarrying and cutting process. They can also accumulate oils and fingerprints from handling. These contaminants create a barrier that can deflect or absorb the laser’s energy, leading to a faint or inconsistent engraving.

• Begin by gathering isopropyl alcohol (90% or higher is recommended) and a clean, lint-free cloth, like a microfiber towel.
• Lightly dampen the cloth with the alcohol. Do not saturate it.
• Firmly wipe down the entire surface of the coaster you intend to engrave. Pay special attention to the corners and edges where dust can accumulate.
• Allow the coaster to air dry completely. Isopropyl alcohol evaporates quickly, so this should only take a minute or two. The slate is now clean and ready.

2. Measuring for Precise Laser Focus

This is the single most important step for ensuring a sharp engraving. Due to the way slate is naturally cleaved, the thickness can vary significantly from one coaster to another, even within the same batch. Relying on an auto-focus measurement from one coaster for the entire job will produce poor results.

• Use a set of digital calipers to get a precise measurement of the coaster’s thickness.
• Place the coaster you are about to engrave inside your laser machine.
• Manually input the exact thickness measurement from your calipers into your laser control software. This sets the perfect focal distance between the laser lens and the surface of that specific coaster.
• It is critical to repeat this measurement process for every single coaster you engrave. This meticulous approach ensures that each piece receives the full, focused power of the laser, guaranteeing a consistently sharp and beautiful result across your entire project.

Mastering Laser Settings for Perfect Results

Achieving a stunning, high-contrast engraving on slate is a science of balancing three key variables: power, speed, and DPI (dots per inch). Unlike wood, which is burned away, slate is fractured or ablated by the laser’s energy. The goal is not to carve deeply but to apply just enough focused heat to cause micro-fractures on the surface, which results in a light gray or brilliant white mark. Understanding how the core laser settings for slate interact is the key to mastering this process. Power dictates the intensity of the laser beam; too little will barely mark the surface, while too much will overheat and melt the stone, creating a messy, dark gray slag instead of a clean, light-colored fracture. Speed controls how fast the laser head moves across the material; a slower speed concentrates more energy on a single point, having an effect similar to increasing power. Finally, DPI, or resolution, determines the overlap of the engraved lines. A higher DPI means more overlap, which can lead to a brighter, more solid fill but also increases the risk of overheating the material. The sweet spot is a delicate balance, typically involving relatively low power and high speed to create a quick, sharp burst of energy that fractures the surface perfectly.

Starting Parameters for Your Laser

Every laser machine is different, and the ideal settings will vary based on your laser’s wattage, lens, and the specific composition of your slate. However, the following parameters provide an excellent starting point for your initial tests. The settings for diode laser slate engraving are often surprising to beginners, as they require significantly less power than engraving on wood. This is because you are aiming for that surface fracture, not deep material removal. It is always better to start with lower power and higher speed and adjust from there.

Recommended Starting Settings (Diode Lasers, 5W-20W):

• Power: 15% – 30%
• Speed: 2000 – 4000 mm/min
• DPI/LPI (Dots/Lines Per Inch): 254 – 318
• Engraving Mode: Fill (most software also has specific dithering modes like ‘Jarvis’ or ‘Stucki’ which can produce excellent grayscale photo results)

For users with more powerful CO2 lasers, the principles are the same, but the values will be different. You will use a much smaller fraction of your machine’s available power and can often run at higher speeds. A typical starting point for a 40W-60W CO2 laser might be 12-18% power at 300-400 mm/s. Notice the change in units from mm/min to mm/s, a common difference between diode and CO2 software, so always double-check your settings.

Fine-Tuning with a Material Test Grid

The starting parameters are just that—a start. It is absolutely essential to run a test grid on a spare piece of slate from the same batch you plan to use. Most laser software, like LightBurn, has a built-in material test feature that makes this process simple. This tool creates a grid of squares, automatically assigning a different power and speed setting to each one, allowing you to see a wide range of results at a glance. When you examine your completed test grid, you will see a clear spectrum of outcomes. Squares engraved with settings that are too fast or too low-powered will appear faint and dark. On the other end, squares with settings that are too slow or high-powered will look melted, glassy, and a muddy gray color. You are looking for the square that is the brightest, most uniform white with a clean, slightly chalky texture. This is your “goldilocks” setting. You might even find several squares that look good, giving you a range of viable settings to produce different shades for more complex, grayscale projects. This simple five-minute test is the most reliable way to dial in the perfect settings for your specific machine and material, preventing wasted coasters and guaranteeing a professional finish every time.

Post-Engraving Finishing Techniques

Once the laser has finished its work, your coaster will emerge from the machine with a beautiful design, but it will be covered in a fine layer of gray dust. This residue is the pulverized stone that was ablated by the laser beam. The final, critical steps of cleaning and sealing are what will transform this raw engraving into a durable and professional-quality product. Skipping these post-engraving techniques can leave your design looking dull and susceptible to smudging and staining. The first part of this process, a thorough cleaning, is non-negotiable for achieving a crisp, clean finish. The goal is to remove every particle of dust from the intricate crevices of your design without damaging the delicate, fractured surface that the laser created.

The Essential First Step: Cleaning Engraved Slate

Properly cleaning engraved slate is a gentle but meticulous process. You will need a soft-bristled brush (an old, clean toothbrush or a soft nail brush works perfectly) and access to water. Avoid using stiff wire brushes or abrasive sponges, as these can easily scratch the unengraved parts of the slate and dull the sharp edges of your design.

• Step 1: Initial Dry Brush. Before introducing any water, start by gently brushing the engraved area with your dry, soft brush. This will remove the majority of the loose dust and prevent it from turning into a slurry when you add water.
• Step 2: Wet Cleaning. Take the coaster to a sink and run cool water over it. While the water is flowing, use your soft brush to gently scrub the engraved portions. Work the bristles into all the details of the design to dislodge any remaining dust particles. You will see the gray residue wash away, revealing the bright white engraving underneath.
• Step 3: Rinsing and Drying. Thoroughly rinse the coaster to ensure all soap or residue is gone. Pat it dry with a lint-free cloth or paper towel, and then let it air dry completely. The unsealed slate will absorb some water and appear darker, but it will return to its natural light gray color once fully dry. Do not proceed to the sealing stage until the coaster is 100% dry, as trapped moisture can cloud the sealant.

Protecting and Enhancing: Sealing Engraved Slate

While a clean, unsealed coaster is functional, sealing engraved slate is the key to elevating its appearance and ensuring its longevity. Sealing accomplishes three things: it dramatically enhances the contrast by deepening the dark gray of the natural slate, making the white engraving pop; it provides a protective barrier against moisture and stains from drink condensation or spills; and it gives the coaster a smooth, finished feel. There are several options for sealing, with the two most popular choices being food-safe mineral oil and a clear acrylic spray.

Method 1: Food-Safe Mineral Oil (Natural Finish)

This is an excellent choice for a rich, natural, semi-gloss look. Mineral oil is what’s used on butcher blocks, so it’s completely food-safe.

1. Pour a small amount of food-safe mineral oil onto a clean, soft cloth.
2. Wipe a thin, even layer of oil over the entire surface of the coaster, front and back. You will immediately see the slate darken to a deep charcoal color.
3. Let the coaster sit for about 15-20 minutes to allow the oil to penetrate the stone.
4. Using a new, clean, dry cloth, thoroughly buff the entire coaster to remove all excess oil. Continue buffing until the surface no longer feels greasy. This finish may need to be reapplied every few months to maintain its look.

Method 2: Clear Acrylic Spray (Durable Finish)

For maximum durability and water resistance, a clear matte or satin acrylic spray is the best option.

1. Work in a well-ventilated area and place the coaster on a piece of cardboard or scrap material.
2. Shake the spray can vigorously for at least one minute, following the manufacturer’s directions.
3. Holding the can 8-12 inches away from the coaster, apply a very light, sweeping mist coat. Do not try to cover it completely on the first pass; a heavy coat can pool and look uneven.
4. Let the first coat dry for the recommended time (usually 15-20 minutes).
5. Apply a second light mist coat to ensure even coverage. Once fully cured, this finish will provide a hard, protective layer that is easy to wipe clean.

Conclusions

You now have the knowledge to create exceptional engraved slate coasters. By carefully selecting your slate, mastering your laser settings, and applying the proper cleaning and sealing techniques, you can achieve professional-grade results. Experiment with different designs and settings to develop your unique style, and enjoy crafting beautiful, durable, and personalized items for sale or as gifts.

Frequently Asked Questions

Q: Why is my engraving coming out dark gray and melted instead of bright white?

A: This is a classic sign of using too much power or too slow a speed. The laser is melting the slate instead of fracturing it. Reduce your power significantly (try starting around 15-20%) and increase your speed. Running a material test grid is the best way to find the “sweet spot” that produces a clean, white mark.

Q: Do I really have to measure every single coaster?

A: Yes, this is non-negotiable for consistent, high-quality results. Natural slate can vary in thickness by a millimeter or more even within the same package. That small difference is enough to throw off the laser’s focus, resulting in blurry or weak engravings. Taking 10 seconds to measure each piece with digital calipers will save you from wasting material and time.

Q: Is mineral oil or acrylic spray better for sealing?

A: It depends on the desired finish and durability. Food-safe mineral oil provides a beautiful, natural, semi-gloss finish that deeply enhances contrast, but it may need reapplication over time. A clear acrylic spray (matte or satin) offers a more permanent, highly durable, and waterproof seal, making it a very low-maintenance option.

Q: Can I use any type of slate for engraving?

A: While most slate can be engraved, the best results come from slate specifically sold for crafting or coasters. Look for pieces that are as flat and smooth as possible. Avoid roofing slate or large, uneven pieces from a garden center, as their rough texture and inconsistent thickness make them very difficult to work with.
